Built for the way your line actually runs.

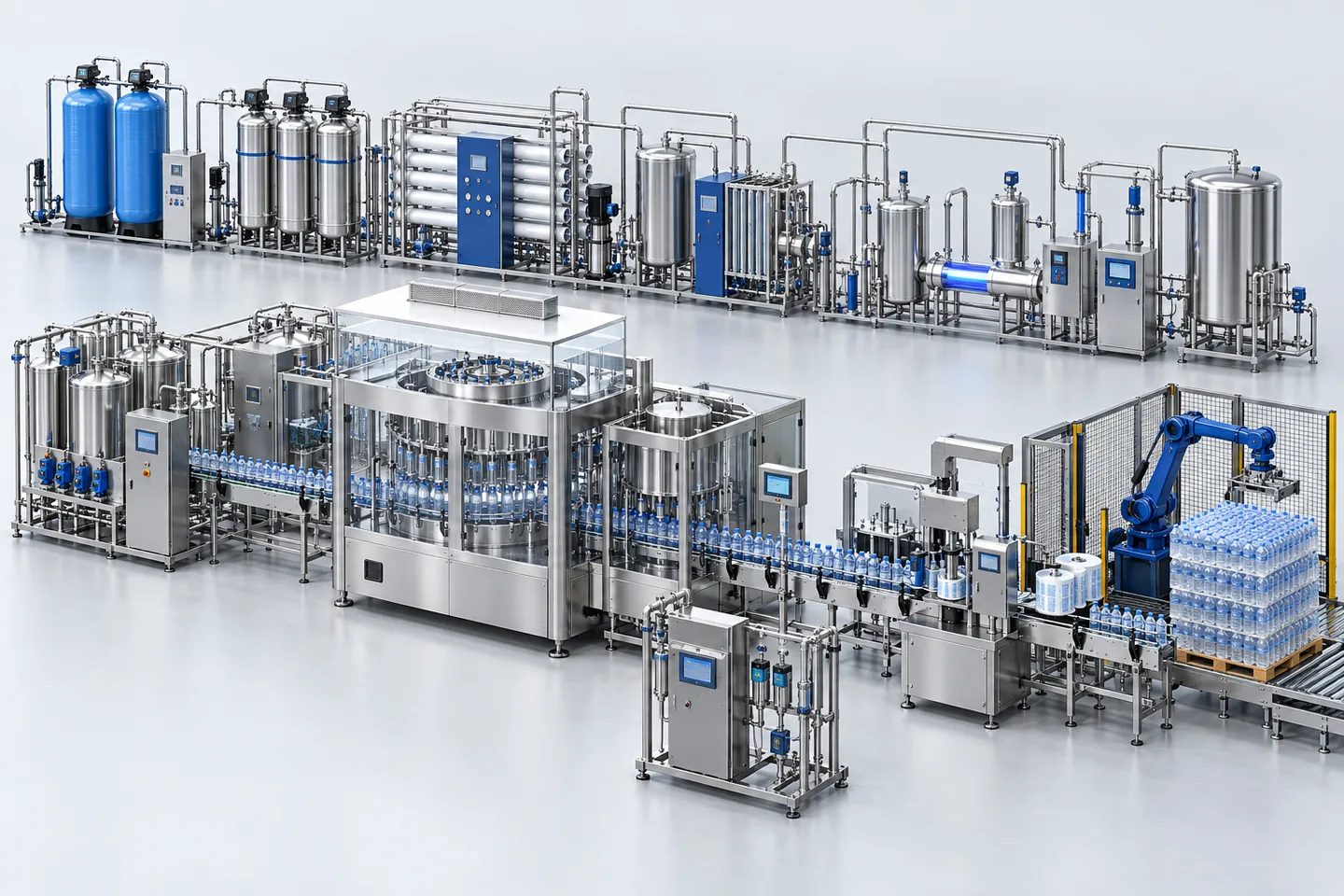

A high-speed 120 BPM (7200 BPH) plant with rotary RFC monoblock, fully automated CIP/SIP, and integrated PET blow molding option. Designed for 24x7 operation.
The 120 BPM plant uses a 40-12-12 rotary monoblock with servo torque capping and laminar-flow filling chamber. Includes automated CIP, online TDS / pH / ozone monitoring, and a 30-station rotary rinser for sub-PPB residue.
Who this configuration suits.
Get a detailed quote for the 120 BPM Plant.
Layout drawing, utility schedule, BIS / FSSAI checklist, itemised quotation in 24 hours.
Everything we ship with this plant.
Standard turnkey scope. Optional add-ons quoted on request.
Specs at a glance.
| Output | 120 BPM (7200 BPH) |
| Bottle sizes | 200ml to 2L PET (5L option) |
| Filling type | Pressure servo (laminar) |
| Power load | 90–110 kW |
| Water requirement | 7500 LPH raw water |
| Recovery | 80–85% |
| Footprint | 7000–9000 sq.ft. |
| Manpower | 9–11 per shift |
Price on Request.
Every plant is quoted against your capacity, feedwater analysis, plot and product mix. Send us those and you get an itemised proposal within 24 hours.
Output, degree of automation and whether you need redundancy on critical stations.
A high-TDS, iron-heavy or seasonal input changes the treatment train and its cost materially.
Machinery only, or turnkey with civil drawings, utilities, commissioning and BIS / FSSAI documentation.
Number of SKUs, bottle sizes and how fast you need to switch between them.
Common questions.
Is CIP automation required at 120 BPM?+
Yes. At 120 BPM, manual CIP becomes a bottleneck and a cross-contamination risk. Our 120 BPM line ships with a 4-tank CIP skid (caustic, acid, hot water, sanitizer) with recipe-based PLC sequencing.
Industry terms used here.
BPM is the standard rating unit for filling and bottling machines, the number of bottles the machine can fill per minute.
A composite metric measuring availability × performance × quality of a manufacturing line. Industry benchmark: 75-85%.
An automated cleaning protocol where cleaning solutions are circulated through process equipment without disassembly.
